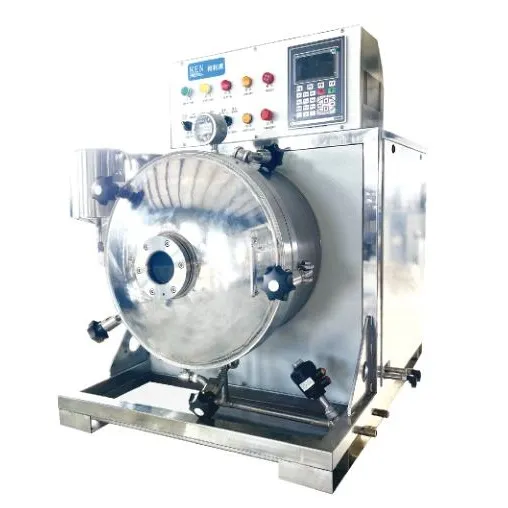

Sample Dyeing Machine 1kg

The Sample Dyeing Machine provides efficient and accurate dyeing of small fabric samples for testing and experimentation. This machine is widely used in the textile, apparel and textile industries, providing a fast and efficient way to test and develop new dyeing recipes.

Heating rate 0.3-4℃/min

Cooling rate 0.3-3℃/min

The dimensions are 100m wide

1050 high 1070mm

1. Simulate dyeing cylinder spray, lifting wheel, etc., improve staining success rate;

2. Dyeing machine special controller, automatic design;

3. All parts in contact with the dye are made of 316L stainless steel;

4. Manufactured according to pressure vessel design rules, safe and reliable, not afraid of inspection.

1. The pressure is adjustable;

2. Nozzle is easy to disassemble and clean ;

3. Three-row opening, spray uniform, no color flowers.

1. Electric heating -- the heating rod directly heats the dye solution, saving energy, and the temperature control is accurate up to ±0.5;

2. Water circulation cooling, fast speed, cooling water can be recycled, saving energy.

1. With cylinder water level control, stirring function

2. Can perform batch multiple feeding, timing quantitative feeding;

3. The dyeing liquid in the master cylinder is returned to the cylinder to ensure the stability of the bath ratio.

High degree of automation, from water, starting, heating, heat preservation, cooling, washing, dosing, stirring, backwater, bucket washing, drainage, alarm, program completion, etc., can be programmed into the dyeing process for automatic control.

Total power 5KW

Bath ratio 1:4 ~ 1:20

Maximum working pressure 0.44Mpa

Cloth load 1-2KG

The maximum operating temperature is 140℃

1. Provides high-quality results. Can be colored to the exact color and depth required.
2. Portability and simplicity of use. Compact structure, easily carried from one location to another, allowing textile makers to undertake rapid trials and tests.
3. An intuitive interface allows people to operate more easily and reduces the chance of errors.
4. The dyeing process can be completed in less time, accelerating the product development cycle.
